Stacking conveyor by Tracked mounted mobile design applied for a bulk materials

Stacking conveyor by Tracked mounted mobile design applied for a bulk materials
Stacking conveyor by Tracked mounted mobile design applied for a bulk materials
Stacking conveyor by Tracked mounted mobile design applied for a bulk materialsStacking conveyor by Tracked mounted mobile design applied for a bulk materialsStacking conveyor by Tracked mounted mobile design applied for a bulk materialsStacking conveyor by Tracked mounted mobile design applied for a bulk materialsStacking conveyor by Tracked mounted mobile design applied for a bulk materials
CategoriesStacking Belt Conveyor
AlbumView larger image
BrandSKE
FOB portShanghai
Terms of PaymentL/C, T/T
Update Time2020-03-30
Detail Information

With a variety of tracked stockpiling conveyor options, the tracked mounted belt conveyors (Called as crawler belt conveyor as well) offer mobility and flexibility for a wide range of applications, including stockpiling and truck & barge loading. And it is also widely used for crushing plant ;

Working principle:

The track chassis surrounds the drive wheels and the outside of a series of rollers by circulating endless crawler belts, so that the wheels are not in direct contact with the ground, but through circulating the role of the track and the ground, and then driven by the wheel drive track, thereby realizing relative rolling of the wheel on the crawler belt, tracks are repeatedly laid on the ground, driving the chassis.

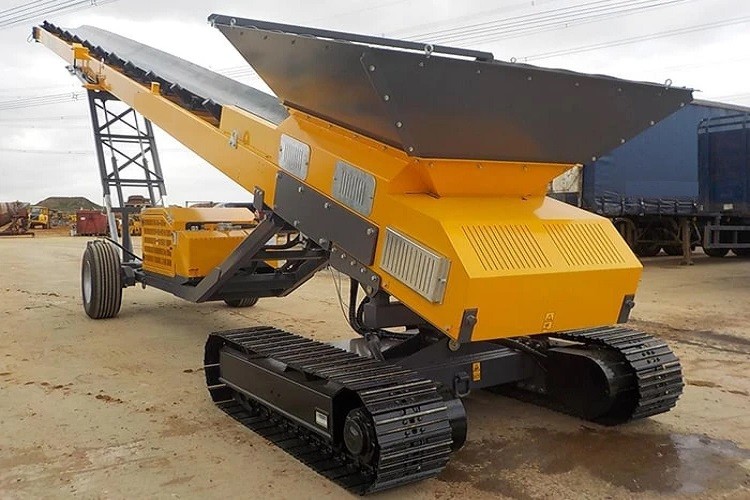

tracked mounted mobile belt conveyor

The chassis of track generally use imitation tank structure to design, that arranged a pair of drive devices with dual track structure on both sides of the chassis. Each track mechanism consists of a drive wheel, a guide wheel and a number of load wheels, the track on the outer side is tensioned by the gear train limit at the time of installation, the drive wheel drives the track to move relatively to the wheel, the guide wheel limits the position of the track during movement, and the weight wheel supports the weight of the entire body.

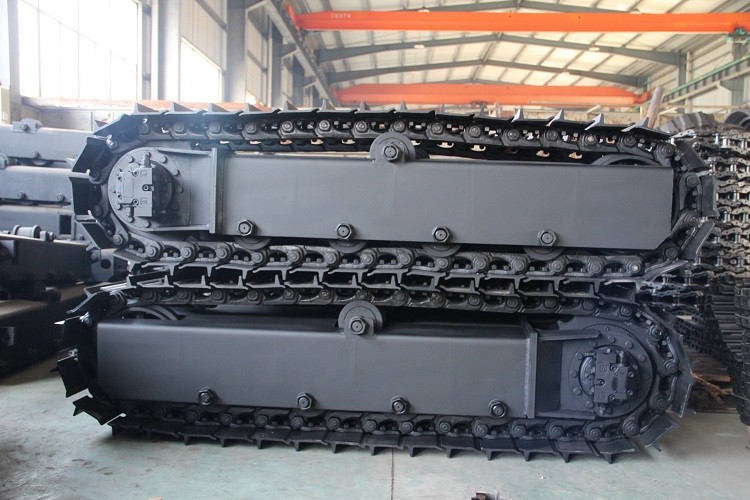

track chassis for tracked conveyor

Adopted track traveling drive,it is widely used for bulk material such aggregates,sand, mineral ore stacking solution, compared to tyre mobile stacking belt conveyor, this series belt conveyor can be used not only on smooth ground but also can be used in mineral ore crushing site;

Features:

All systems are mounted on a mobile platform:

It can be free to move anywhere in the yard site, walking wheel uses track, there is no need to place a fixed track in the venue, increase yard utilization;

Feeding device has steady flow function, ensuring continuous, uniform and smooth feeding;

No space limited; Easy operation;

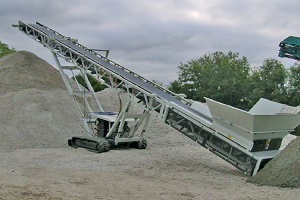

tracked conveyor for stacking
